Overview:
- Dimension: 20.3 x 29.8 x 3.4 cm
- Item model number: F-3194
- OE#: 4478300000 ; A4478300000 ; 9108301200 ; A9108301200
- Premium three-layer design filter with efficient purification
- We suggest changing the cabin air filter in every 10,000km or 1 year
Features:
- Premium thick carbon activated layer with superior odor absorption
- Effectively filtering out pollen, diesel soot, particulate matter (PM2.5), pet dander, ozone, mold, bacteria, dust & allergens
- Combining technologies to provide premium cabin air filtration and help prevent musty odors and mold from forming inside ventilation
- Fine handcrafted to ensure the premium quality of products. Solid frame to prevent deformation
Fit for:
M-Benz |
Metris (2016-2021) L4 2.0L |
M-Benz |
Sprinter 1500 (2019-2021) L4 2.0L |
M-Benz |
Sprinter 2500 (2019-2021) L4 2.0L |
M-Benz |
Sprinter 2500 (2019-2021) V6 3.0L |
M-Benz |
Sprinter 3500 (2019-2021) V6 3.0L |
M-Benz |
Sprinter 3500XD (2019-2021) V6 3.0L |
Cross-reference: Hengst E4927LC ; PC99348X ; LAK1198 ; CF1362

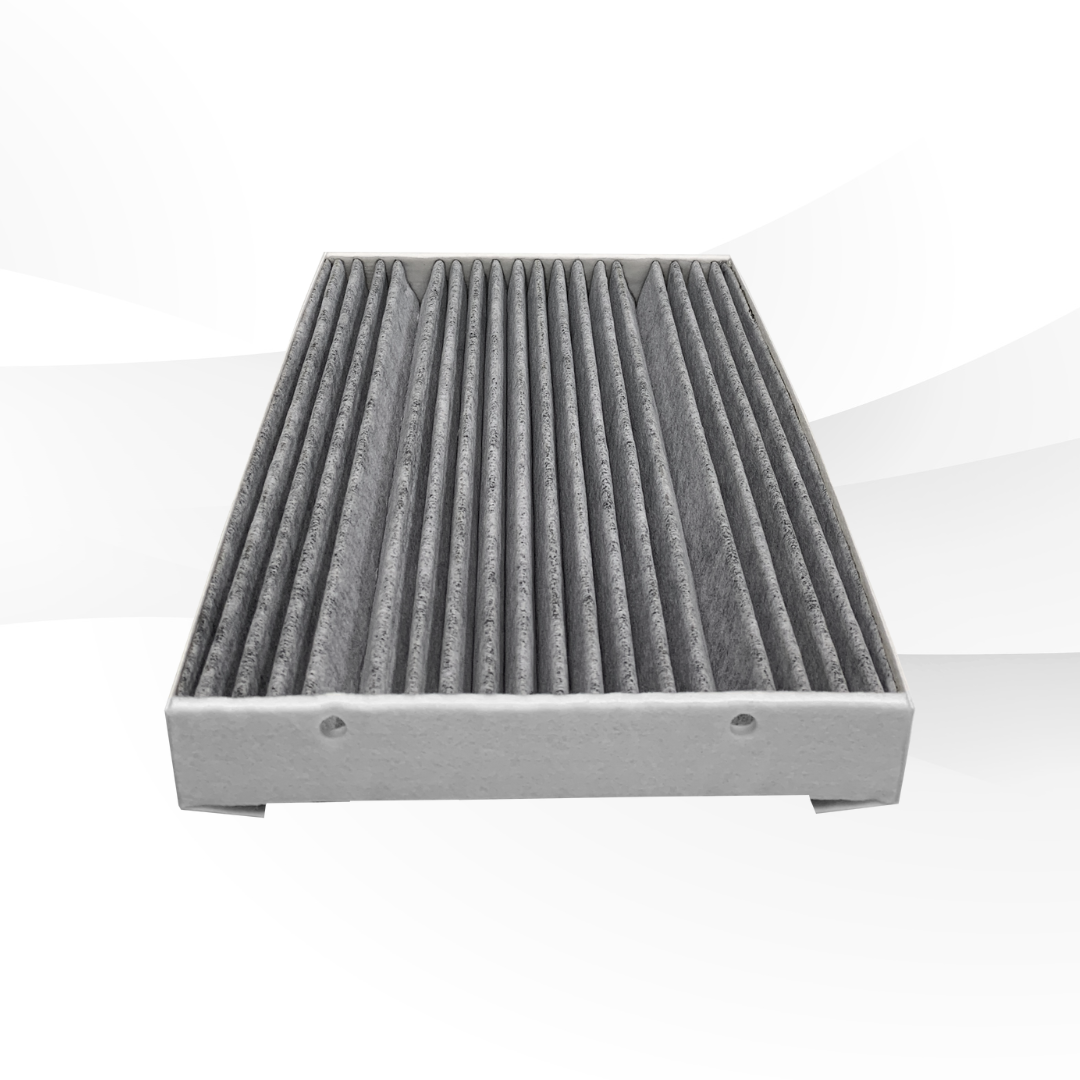

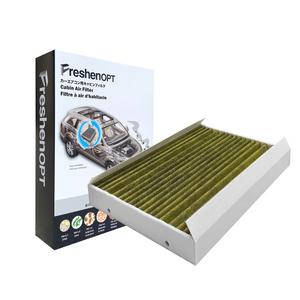

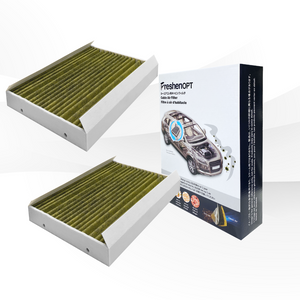

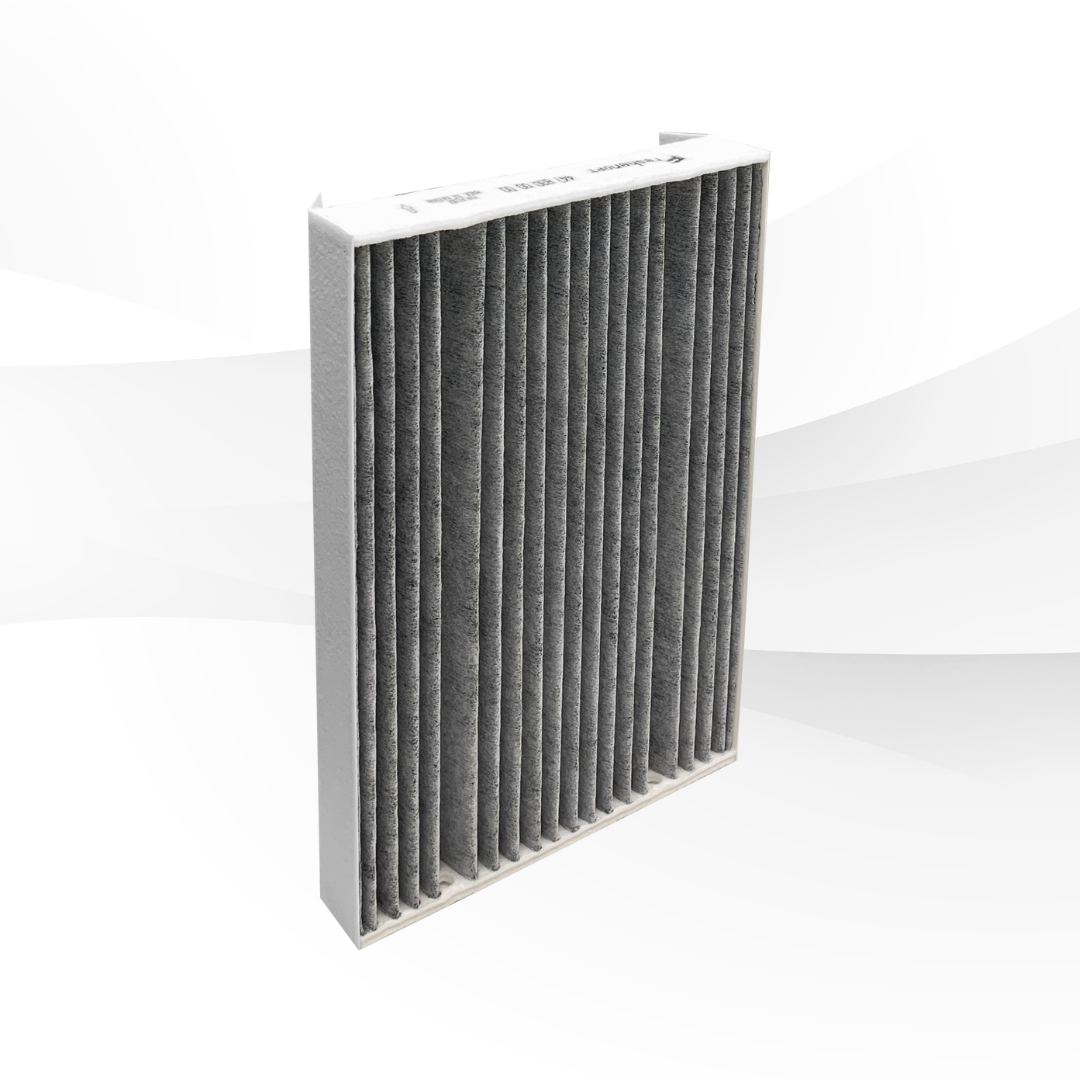

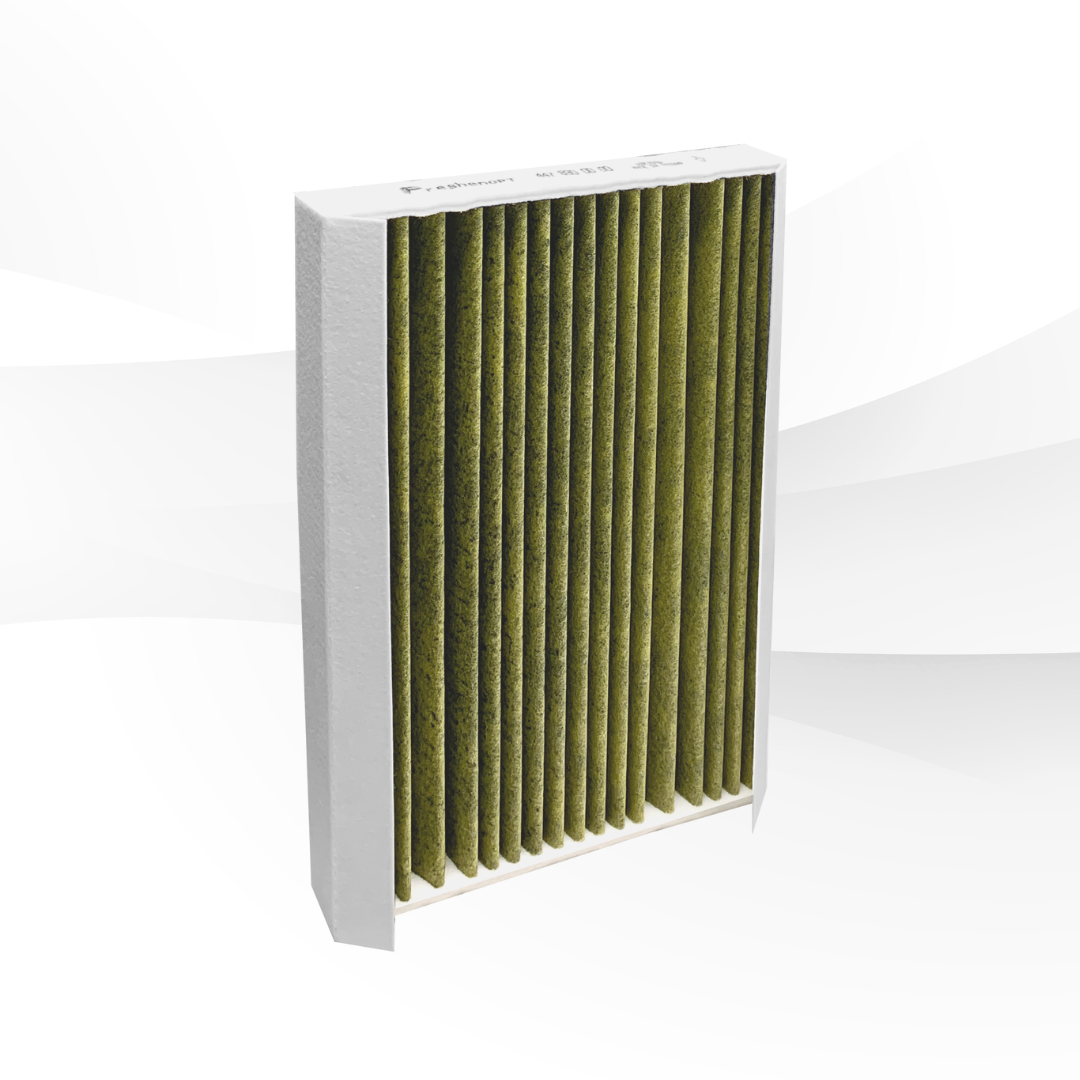

FreshenOPT F-3194
The primary purpose of cabin air filter is to help clean the air that enters into your vehicle through the ventilation system, keeping the air inside your vehicle clean and fresh.
Location of this cabin filter: Passenger side under the glove box. Tools: T20 Screwdriver.
When you change your filter (maybe variant for your model. Please see the owner’s manual or find a local mechanic for exact instructions for the particular model):
- The filter housing is located on the passenger side under the glove box at footwell.
- Pull to remove the cover and using T20 screwdriver to remove 3 bolts (2 upper bolts and 1 bolt at bottom).
- Pull the whole plastic box a bit back and now you can see filter housing.
- Unlock the filter housing cover by turn counterclockwise.
- Remove the old filter by pulling it straight down and install your new cabin air filter.
- Install remove parts by reversing the removal procedure and it’s done.
